Characteristic
1.Line to board and line to line options are available
2.Compact and compact, with 1.25 mm spacing, can save space
3.Friction lock ensures a durable connection
4.Operating temperature range: - 40 ° C to 105 ° C
5.Phosphor bronze contact
6.Tinned contact area
7.Four needle arrangement options, including through hole and SMT in straight and right
angle configurations

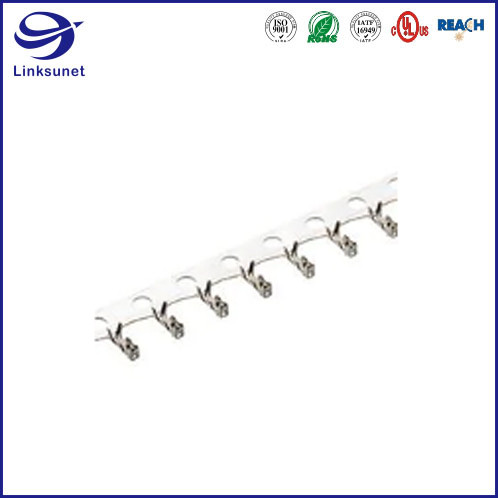

| Picoblade 50079 125 V Female Socket Terminal for Soldering Wire Harness |
| Categories | Connectors, Interconnects |
| Rectangular Connectors - Contacts |
| Manufacturer | Molex |
| Series | PicoBlade 50079 |
| Packaging | Tape & Reel (TR) |
| Part Status | Active |
| Pin or Socket | Socket |
| Contact Termination | Crimp |
| Wire Gauge | 26-28 AWG |
| Contact Finish | Tin |
| Contact Finish Thickness | 35.4µin (0.90µm) |
| Base Part Number | 50079 |
Documents & Media
| Datasheets | 500580000 Crimp Spec |
| 50079-8x00 Drawing |
| 1.25mm Pitch Wire to Wire Prod Spec |
| Video File | 1.25mm Connector Systems |
| Environmental Information | RoHS3 500798000 |
| Featured Product | PicoBlade Connector System |
| HTML Datasheet | 50079-8x00 Drawing |
| PCN Assembly/Origin | Production Location 19/Sep/2018 |
FAQ
Standard Confirm
Product quality standard:IPC/WHMA-A-620B The first product confirmation TO customer
Requirements and Acceptance for Cable and
Wire Harness Assemblies
Sample L/T,MOQ
We are must charge the sample expense, Lead Time:Material complete after 1-2 weeks
when under you order form,we return the delivery(usually)
sample expense MOQ: Depends on the main material
Wire &Cable Customized
High ranking : Leoni, Lapp, Helukable, Igus, Special products, we can mold custom, time 3-6
Apha, Belden, 3M, or Customer specified weeks
Mid-ranking : Ltk, Wonderful, Cableplus,
Honglin
Packing Connector
Carton or wooden case packing Dominant brands: Te, Molex, Amphenol, Harting,
Logistics:Customer forwarder,Our forwarder Yeonhab,Jst.
Q How can I get the sample to check your quality?
After price confirmation, you can require for samples to check our product’s quality. We are must charge
the sample expense, when under you order form, we return the sample expense.
Q What can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please
tell us in your email so that we will regard you inquiry priority.
Q What is your term of delivery?
We accept EXW, FOB Shanghai . You can choosethe one which is the most convenient or cost effective
for you.
Q What about the lead time for the mass production?
Honestly, it depends on the order quantity and the season you place the order.
